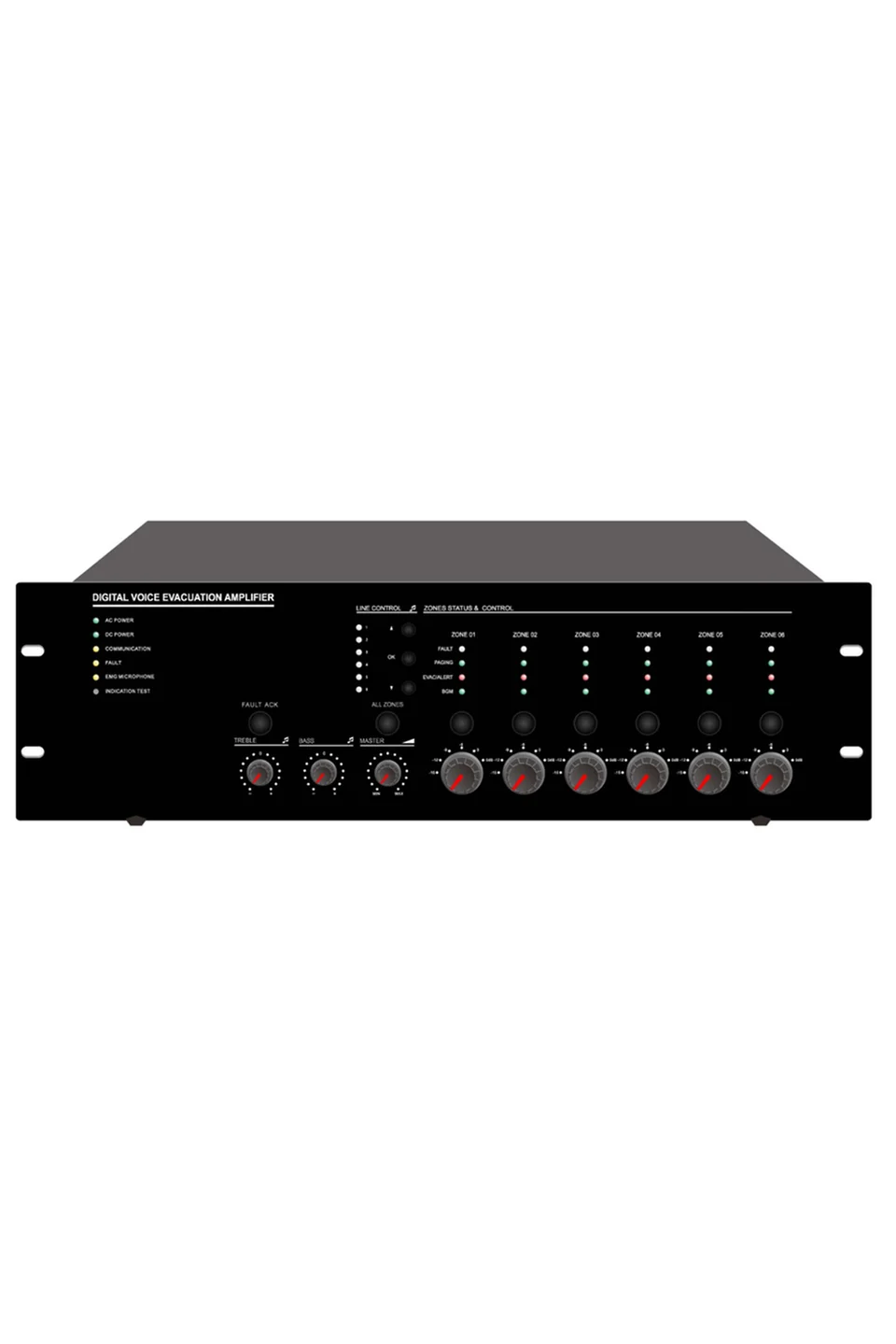

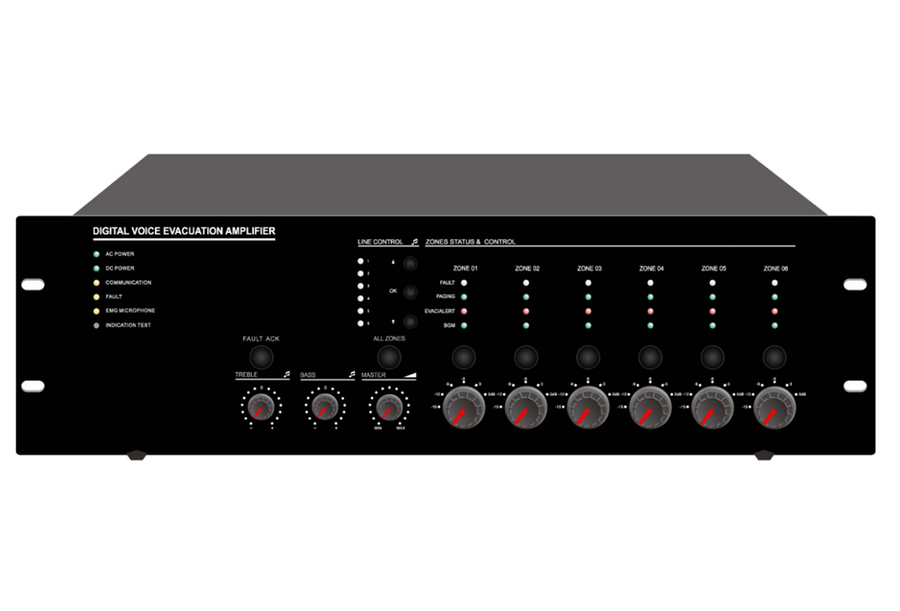

DP-EVAC1000RT 6 Zone Router, Built-in 500W Class-D Amplifier

Description: The DP-EVAC1000RT voice evacuation router is one of the most important equipments of EN54-16 certified public address & voice evacuation system. The all in one voice alarm & evacuation router with same features of voice evacuation controller DP-EVAC1000 which includes zone paging controller, all main signal line monitoring, amplifier changeover, speaker line supervision, power supply monitoring and power amplifier and fire alarm interface, while all main signals are feed from the master controller. The voice evacuation router is innovated with most advanced DSP (digital signal processor) to ensure its hi-fi audio performance and superior signal processing in case of commercial announcement and emergency evacuation. Each router built-in 6 zone speaker outputs, rated power output at 500W. The voice evacuation router shall be pre-set through the supplied software over microphone number, zone number, zone loading, speaker monitoring, fire alarm mode, alert/EVAC message zone output, AC/DC etc, then synchronized the setting to master controller and router. The voice evacuation system is strictly follow the Construction products Regulation （ EU ） No 305/2011: EN54-16:2008 Voice Alarm Control and Indicating Equipment. Feature: · EN54-16 certification No. I/ISEETC. 000620190305. · Digital voice evacuation system all in one router. · Integration of voice evacuation router, zone paging controller, all main signal line monitoring, amplifier changeover, speaker line supervision, power supply monitoring and power amplifier and fire alarm interface. · Same features of master controller EVAC-500 while all main signals are feed from the master controller · Auto broadcasting EVAC and alert 256 voice messages to pre-set zones. · AB speaker line surveillance to avoid any speaker line failure. · Back-up power amplifier management. · Up to 120 zones by cascaded with master controller DP-EVAC1000. · Redundant network cabling backup through CAT6 cable loop connection. · 8 supervised control inputs & 8 control outputs, 1 fault, 1 reset & 1 EVAC relay outs. · Logs and fault events auto recording. Specification: Model DP-EVAC1000RT Description 6 Zone Voice Evacuation Router Rated Power Output 500W Fireman Microphone 5Mv, 600Ω Frequency Response 80Hz~20kHz THD ＜1% at RMS,1KHz S/N Ratio >70dB Speaker Output 100V AB 6 zone speaker outputs REC Output 200mV Control Input & Output 8 control inputs: Max 3.3V (voltage mode) or 0V closed contact; 8 control outputs: 0V closed contact; 1 fault, 1 reset & 1 EVAC relay outs Event Record HEX format, Hard Flash memory, events up to 1000 records, 10 years valid Operation Envr Operation Temp: +5℃ ~ +40℃; Store Temp: -20℃ ~ +70℃; Operation Humidity: <95% Power Consumption 650W Power Supply AC230V or 115V & 24V DC inputs, 50-60HZ AC Fuse 250V/6.3A, slow type and restorable fuse Dimension 484×132×449mm Weight 23kg Ürün Etiketleri #Decon DP-EVAC1000RT #Decon EN54-16 #Decon Acil Anons #EN54 Sertifikalı Hoparlör #EN54 Sertifikalı Amfi # #EN54 Belgeli Acil Anons Sistemleri #EN54 Belgeli Seslendirme Ürünleri #Decon Audio # #Decon Perpa #Decon Türkiye #Decon Ses Sistemleri #Decon Hoparlör #Decon Anfi

Ürün kodu

DP-EVAC1000RT

Model

DP-EVAC1000RT

Description

6 Zone Voice Evacuation Router

Rated Power Output

500W

Fireman Microphone

5Mv, 600Ω

Frequency Response

80Hz~20kHz

THD

＜1% at RMS,1KHz

S/N Ratio

>70dB

Speaker Output

100V AB 6 zone speaker outputs

REC Output

200mV

Control Input & Output

8 control inputs: Max 3.3V (voltage mode) or 0V closed contact;8 control outputs: 0V closed contact;1 fault, 1 reset & 1 EVAC relay outs

Event Record

HEX format, Hard Flash memory, events up to 1000 records, 10 years valid

Operation Envr

Operation Temp: +5℃ ~ +40℃; Store Temp: -20℃ ~ +70℃; Operation Humidity: <95%

Power Consumption

650W

Power Supply

AC230V or 115V & 24V DC inputs, 50-60HZ

AC Fuse

250V/6.3A, slow type and restorable fuse

Dimension

484×132×449mm

Weight

23kg
