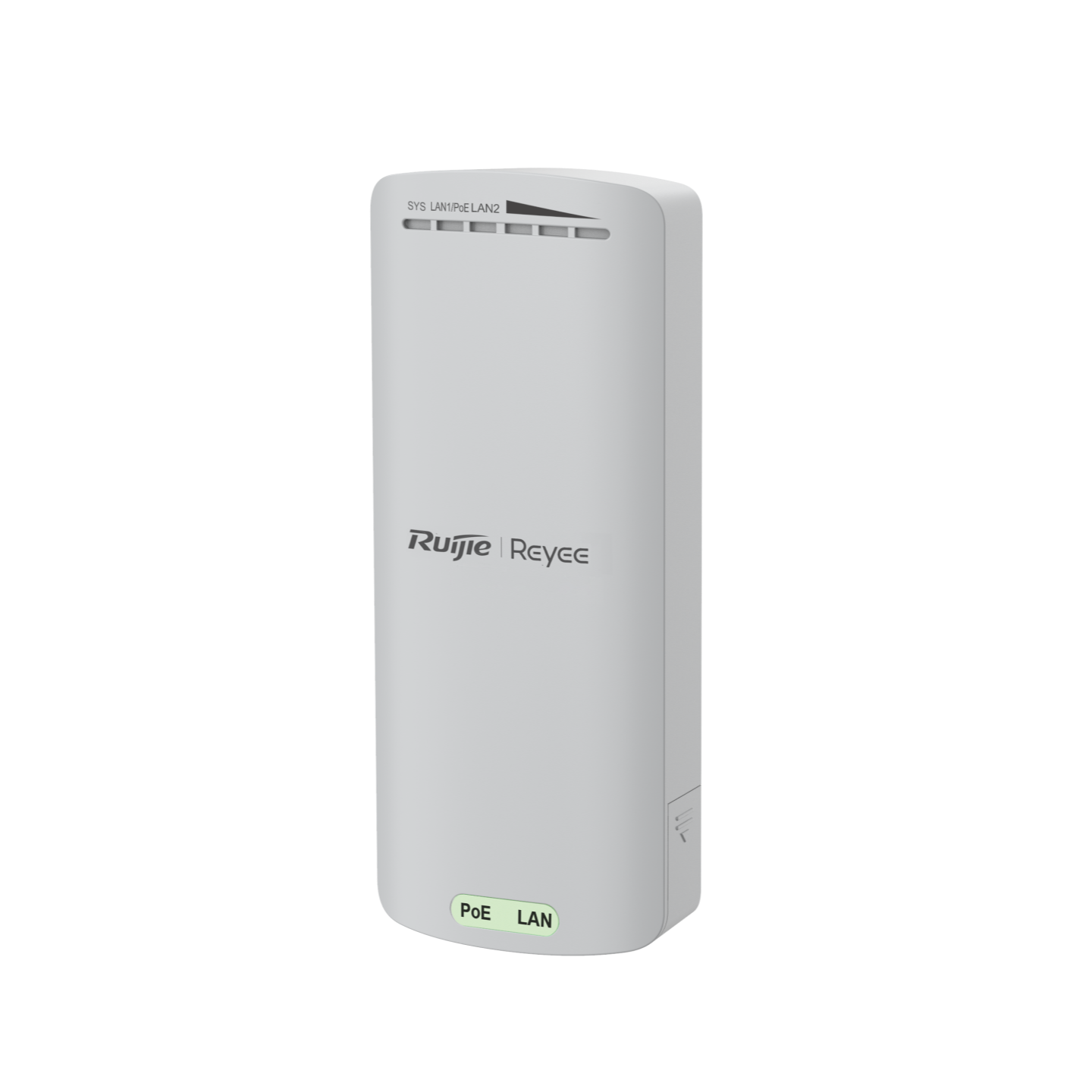

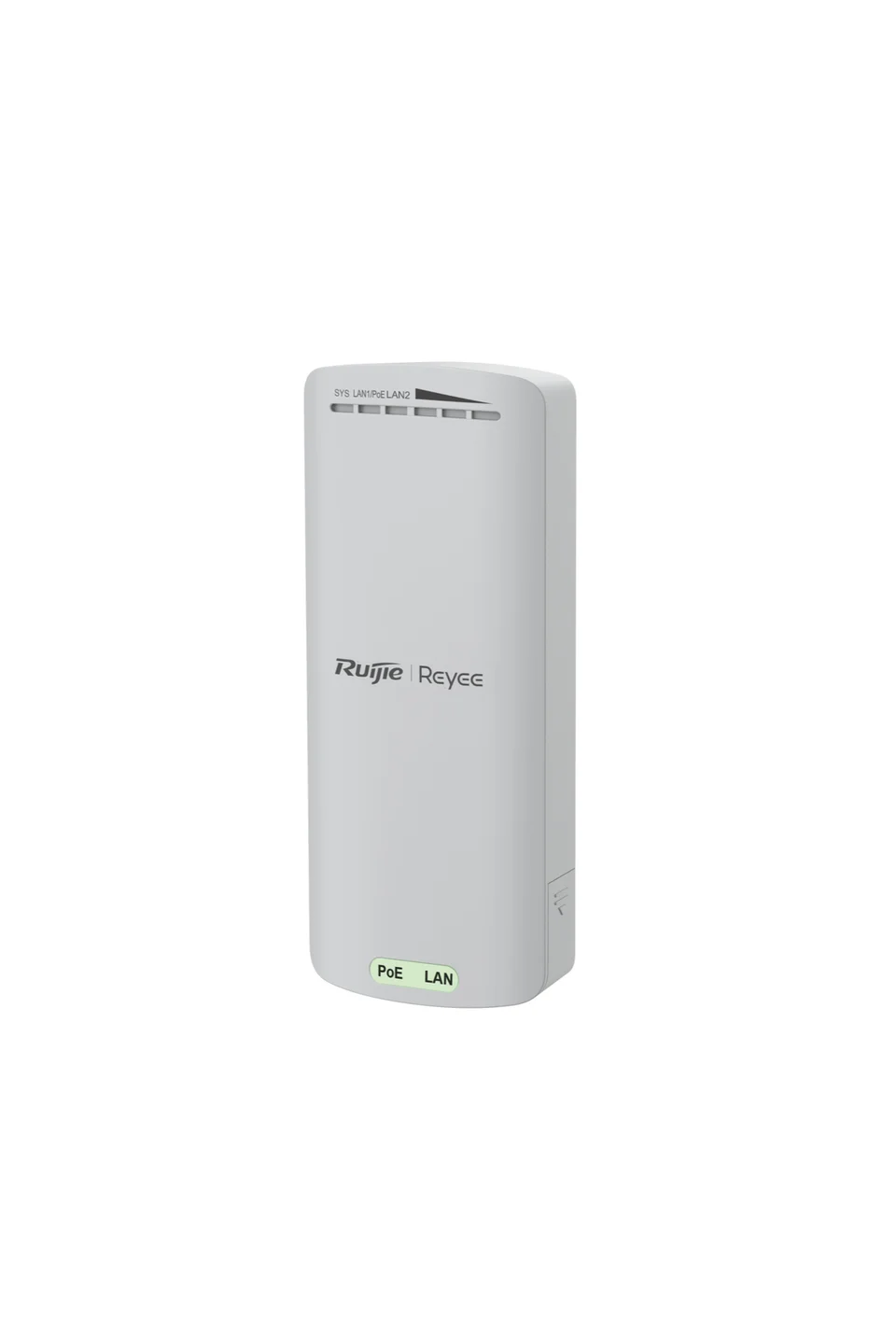

RG-EST100-E 2.4GHz Tek Bant Dual-Stream Point to Point

Reyee RG-EST100-E Teknik Özellikler Radyo Tasarımı : 2 GHz Tek-Bant Çift-Akış (Single-Band Dual-Stream) İletim Protokolü : IEEE 802.11b/g/n Çalışma Bandı : 802.1111b/g/n: 2.400～2.483GHz Anten : Yönlü antenler, 8 dBi Polarizasyon : Yatay: 70°, Dikey: 70° Köprüleme Mesafesi : 500 metre (önerilen) Uzamsal Akışlar (Spatial Streams) : 2x2, MU-MIMO Bellek/Flash : 64 MB/8 MB Maksimum Veri Hacmi (Throughput) : 2.4 GHz’de 300 Mbps’ye kadar Maksimum İletim Gücü : ≤100 mW (20 dBm) (ayarlanabilir) IP Koruma Sınıfı : IP55 Yıldırımdan Korunma : ±6 KV(Ortak Mod) Kurulum : Duvara-monte/Direğe-monte Kurulum : Duvara-monte/Direğe-monte Boyutlar (Derinlik x Genişlik x Yükseklik) : 165,5mm×68,7mm×42mm Ağırlık : 0,3 kg Certification : CE Özellikler Örnek Köprüleme Performansı RSSI (dBm) Verim ve Kamera Sınırları 3 Milletvekili 4 ila 5 MP 6 ila 7 MP 7 ila 8 MP RG-EST100-E 60 Mbps/100 metre (HT20) 30 Mbps/500 metre (HT20) –58 dBm/100 m –68 dBm/500 m 10/100 metre 5/500 metre 6/100 metre 3/500 metre 3/100 metre 1/500 metre 3/100 metre 1/500 metre RG-EST310 V2 90 Mbps/100 metre (HT40) 80 Mbps/500 metre (HT40) 80 Mbps/1 km (HT40) 40 Mbps/2 km (HT40) –52 dBm/100 m –65 dBm/500 m –68 dBm/1 km –75 dBm/2 km 16/100 m 16/500 m 16/1 km 6/2 km 10/100 m 10/500 m 10/1 km 4/2 km 7/100 m 7/500 m 7/1 km 3/2 km 5/100 m 5/500 m 5/1 km 2/2 km RG-EST350 V2 230 Mbps/1 km (HT40) 200 Mbps/3 km (HT40) 150 Mbps/5 km (HT40) –58 dBm/1 km –66 dBm/3 km –70 dBm/5 km 50/1 km 45/3 km 20/5 km 30/1 km 25/3 km 12/5 km 20/1 km 13/3 km 8/5 km 15/1 km 12/3 km 6/5 km RG-HavaMetro460G 230 Mbps/1 km (HT40) 200 Mbps/3 km (HT40) 150 Mbps/5 km (HT40) 80 Mbps/10 km (HT40) –58/1 km –66/3 km –70/5 km –78/10 km 50/1 km 45/3 km 20/5 km 16/10 km 30/1 km 25/3 km 12/5 km 8/10 km 20/1 km 13/3 km 8/5 km 5/10 km 15/1 km 12/3 km 6/5 km 4/10 km RG-HavaMetro460F 80 Mbps/1 km (HT40) 80 Mbps/3 km (HT40) 70 Mbps/5 km (HT40) 50 Mbps/10 km (HT40) –58/1 km –66/3 km –70/5 km –78/10 km 12/1 km 12/3 km 10/5 km 6/10 km 8/1 km 8/3 km 6/5 km 4/10 km 6/1 km 6/3 km 5/5 km 3/10 km 4/1 km 4/3 km 3/5 km 2/10 km RG-AirMetro550G-B 200 Mbps/1 km (HT40) 180 Mbps/3 km (HT40) 100 Mbps/5 km (HT40) -60/1 km -68/3 km -75/5 km 35/1 km 30/3 km 16/5 km 20/1 km 16/3 km 10/5 km 15/1 km 12/3 km 6/5 km 10/1 km 8/3 km 5/5 km Ürün Etiketleri #RG-EST100-E #Reyee #Reyee Wireless #Reyee Access Point Fiyat #Reyee Fiyat Listesi #Reyee Perpa

Ürün kodu

RG-EST100-E
