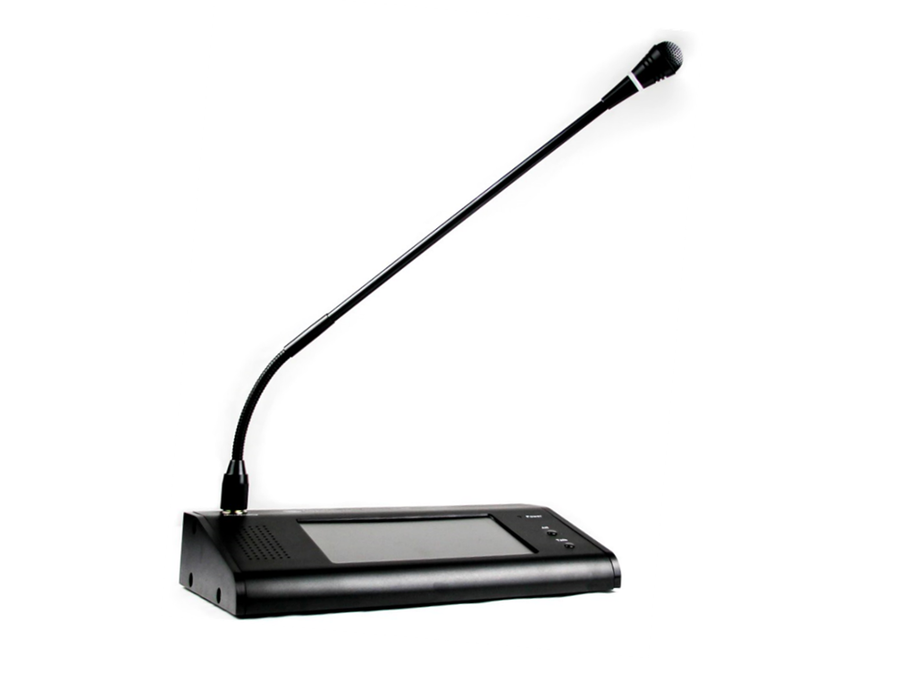

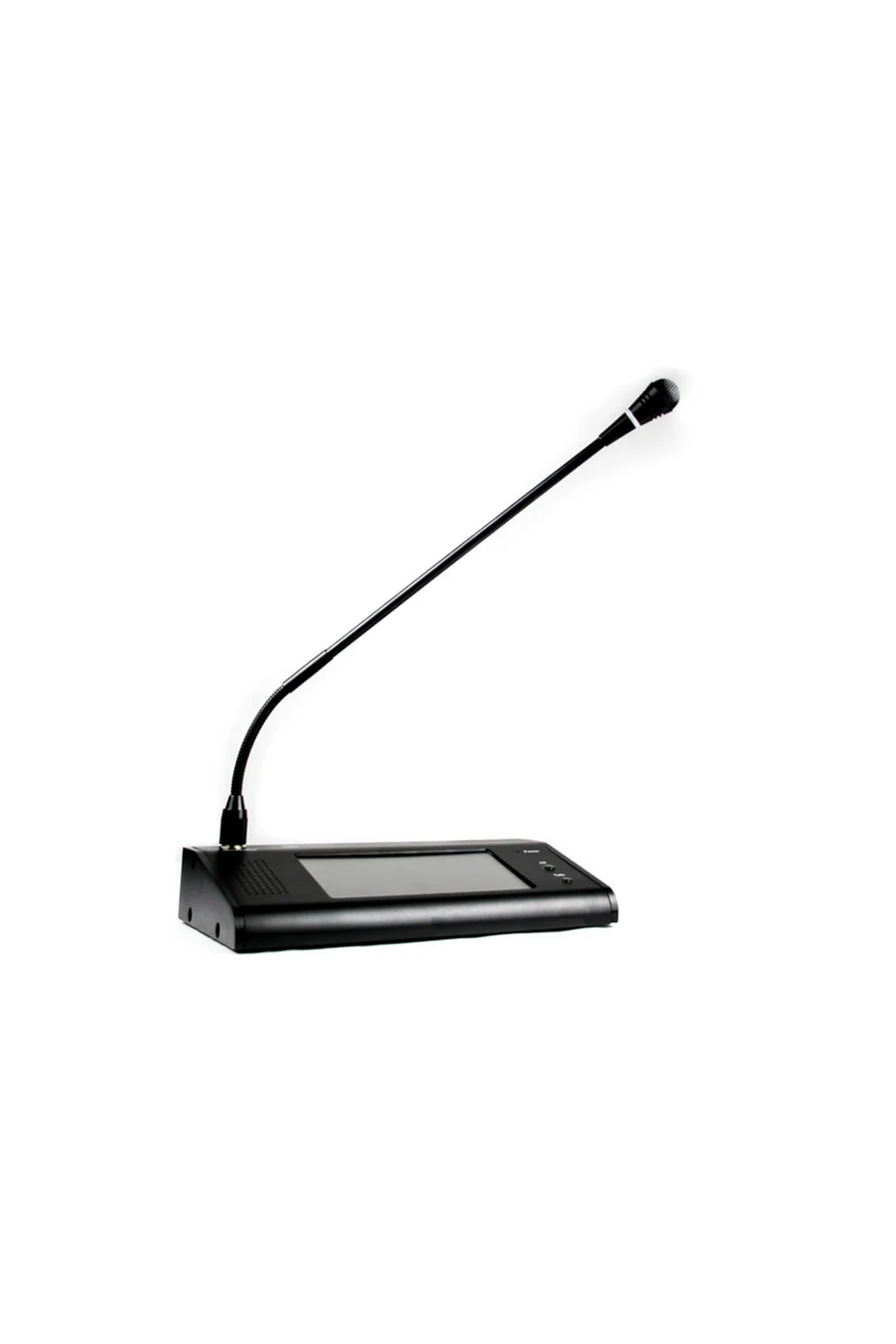

DP-EVAC1000TP Remote Paging Microphone, Touch Screen Type

Feature: Touch screen remote microphone or call station. EN54-16 Certified remote microphone. Business & commercial zone live announcement use. Multiple zones, single zone & all zone paging. Each microphone of 120 zone capacity. Support 32 remote microphones of loop redundancy connection. The remote microphone unit is fully real time monitored. Support PPT and lock type two modes. Shielded CAT‑6 cable up to 600 meters. Power supply from EVAC-500 controller. Description: The DP-EVAC1000TP touch screen remote microphone or call station is EN54-16 certified and designed exclusively for DP-EVAC-1000 public address & voice evacuation system. The remote microphone is used for business and commercial live announcement to selected zones or all zones. The remote microphone is designed of 120 zone with busy & working indicators. Up to 32 units of remote microphone could be connected to the voice evacuation system via standard, shielded CAT‑6 cable and RJ45 connectors in a redundancy loop up to 600 meters. The talk button maybe a PTT or lock type pre-set by the dipswitch on the rear of the microphone. Green LED indicates the microphone and zone active status. The remote microphone is 24VDC powered by the EVAC-500 controller. The voice evacuation system is strictly follow the Construction products Regulation （ EU ） No 305/2011: EN54-16:2008 Voice Alarm Control and Indicating Equipment. Specifications: Model DP-EVAC1000TP Description Touch Screen Remote Microphone Power Consumption 3W Zone Capacity 120 Zones System Capacity 32 Remote microphones Line Inputs 350mV, 10kΩ Mic Input 5mV, 600Ω Frequency Response 80Hz~16kHz THD ＜ 1% at RMS,1KHz S/N Ratio >70dB Operating Temp -20 ℃ to +70 ℃ Power Supply DC24V, ±20% Humidity <95% no condensation Dimension 256×149×52 mm Weight 1.5kg Ürün Etiketleri #Decon DP-EVAC1000TP #Decon EN54-16 #Decon Acil Anons #EN54 Sertifikalı Hoparlör #EN54 Sertifikalı Amfi # #EN54 Belgeli Acil Anons Sistemleri #EN54 Belgeli Seslendirme Ürünleri #Decon Audio # #Decon Perpa #Decon Türkiye #Decon Ses Sistemleri #Decon Hoparlör #Decon Anfi

Ürün kodu

DP-EVAC1000TP

Model

DP-EVAC1000TP

Description

Touch Screen Remote Microphone

Power Consumption

3W

Zone Capacity

120 Zones

System Capacity

32 Remote microphones

Line Inputs

350mV, 10kΩ

Mic Input

5mV, 600Ω

Frequency Response

80Hz~16kHz

THD

＜1% at RMS,1KHz

S/N Ratio

>70dB

Operating Temp

-20℃ to +70℃

Power Supply

DC24V, ±20%

Humidity

<95% no condensation

Dimension

256×149×52 mm

Weight

1.5kg
